DESVIEW U6 Moniteur 5,5¨ avec le contrôle de caméra

DESVIEW U6 Moniteur 5,5¨ avec le contrôle de caméra

484.00 Hors taxes

DESVIEW U6 Moniteur 5,5¨ à écran tactile à haute luminosité avec la fonction de contrôle de caméra

Catégorie :
  • Description
  • Specifications techniques
  • Avis (0)

Description

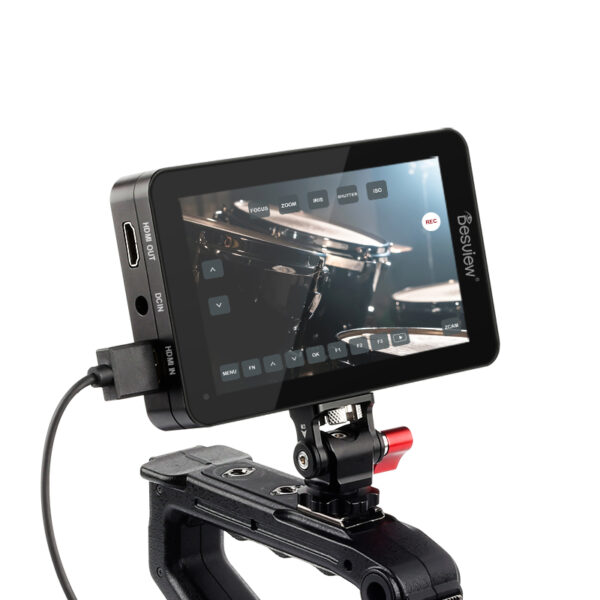

The compact U6 5.5″ 4K HDMI Camera Control Monitor from Desview provides professional monitoring in a sharp 5.5″ IPS LCD with 1920 x 1080 resolution, 2800 cd/m² brightness, 1000:1 contrast ratio, and touchscreen control. The monitor features HDMI input and output, and it supports up to DCI and UHD 4K video input and pass-through output. It also features a USB Type-C port that provides 5V power input for the monitor, and it also can be used for LANC camera control functions such as iris and focus. You can also power your camera or other accessories using the 8 VDC barrel output.

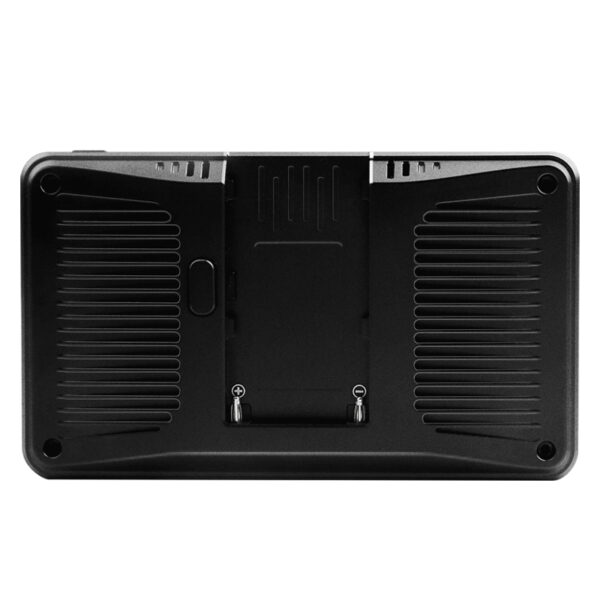

The IPS LED panel has a viewing angle of 178° L/R, U/D for good color and contrast, even with off-axis viewing, and it displays 90% of the DCI-P3 standard. The U6 is powered using the integrated L-series battery plate or via a separately available DC adapter. A USB Type-A port allows you to import custom 3D LUTs. Two 1/4″-20 threads on the side and bottom allow you to mount the monitor on a variety of configurations, or you can use the included cold shoe adapter to mount the monitor on your camera. The 3.5mm headphone jack on the bottom allows you to monitor the embedded audio.

Features
Daylight-viewable, 5.5″ touchscreen on-camera monitor with 2800 cd/m² brightness.
Slim, lightweight design with touchscreen IPS LCD panel.
HDMI supports video input up to DCI/UHD 4K60.
Power the camera via USB Type-C or DC input.
Control the camera using the USB Type-C port for LANC control functions such as iris and focus.
Two 1/4″-20 mounting threads on the side and bottom of the monitor.
Touchscreen

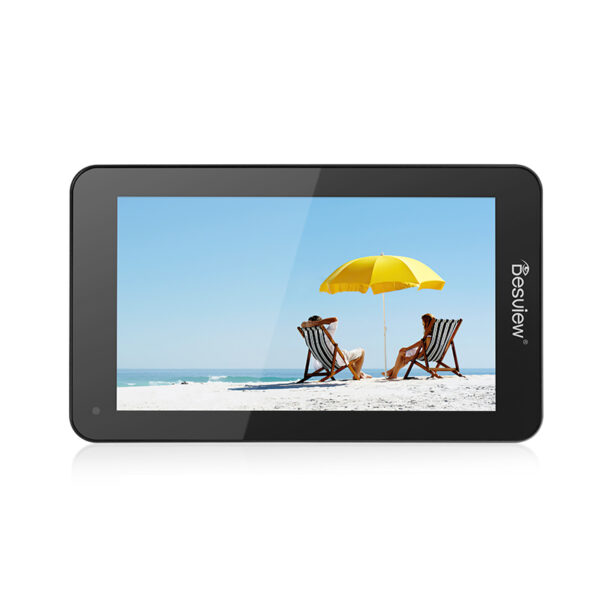

The U6 monitor adopts a 5.5″ touchscreen panel with a 1920 x 1080 resolution and 16:9 aspect ratio. Tapping the screen with one finger can control the whole monitor, and it supports gestures such as pinch to zoom, which helps check every corner and detail of the image. A short press on the power button can lock the screen to prevent accidental changes to your selections.
The 2800 cd/m² high brightness provides a clear display, even when filming in bright exteriors.
Display Tools
Pixel pinch-zoom
Aspect ratios: Preset and customizable
Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 1.79x, 2.0x
Image flip: Auto and manual
Image rotation: Auto and manual
Color focus assist, with adjustable style and intensity
Peaking, with adjustable intensity
False color
Zebra, customizable
Waveform: Luma and RGB, customizable with region-of-interest highlighting
Vectorscope
RGB parade, customizable
Histogram: Luma and RGB
LUT import via USB storage device
Audio meter display
